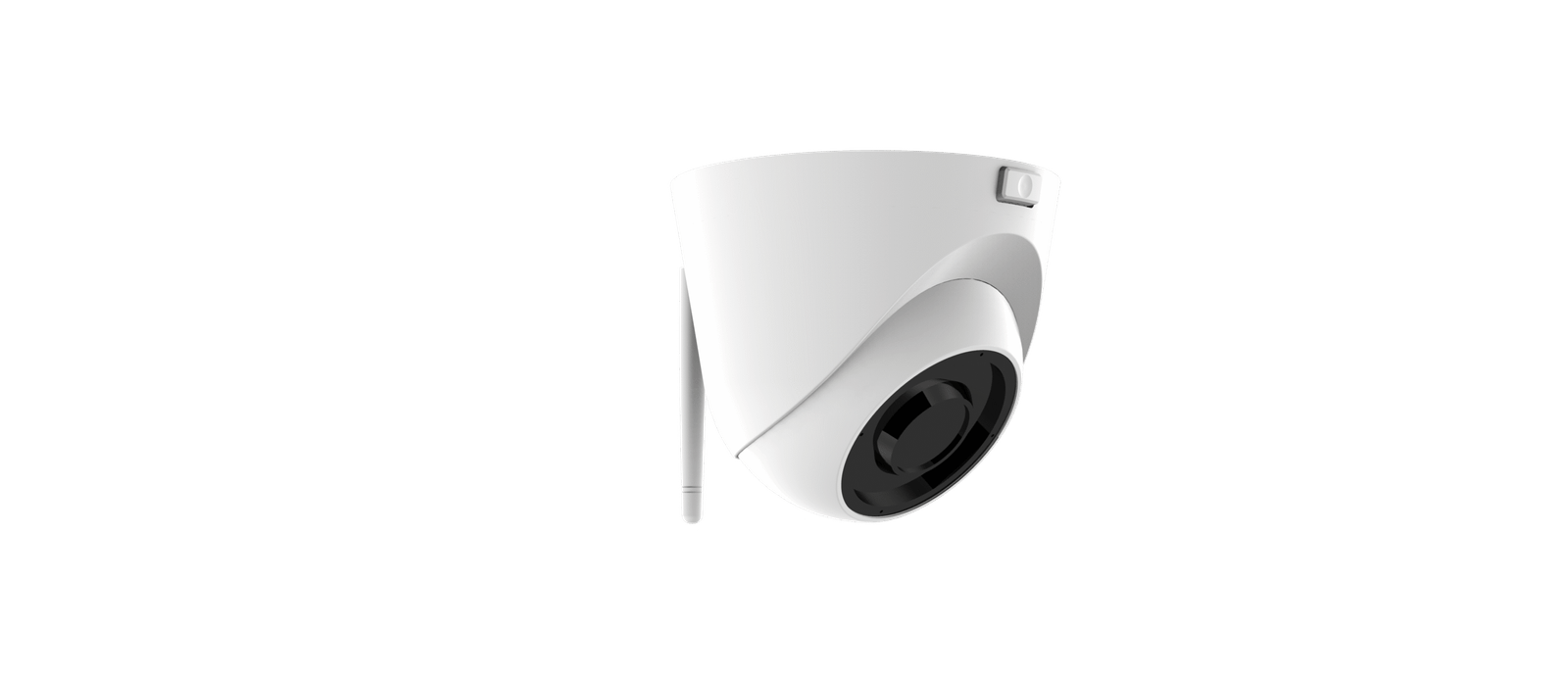

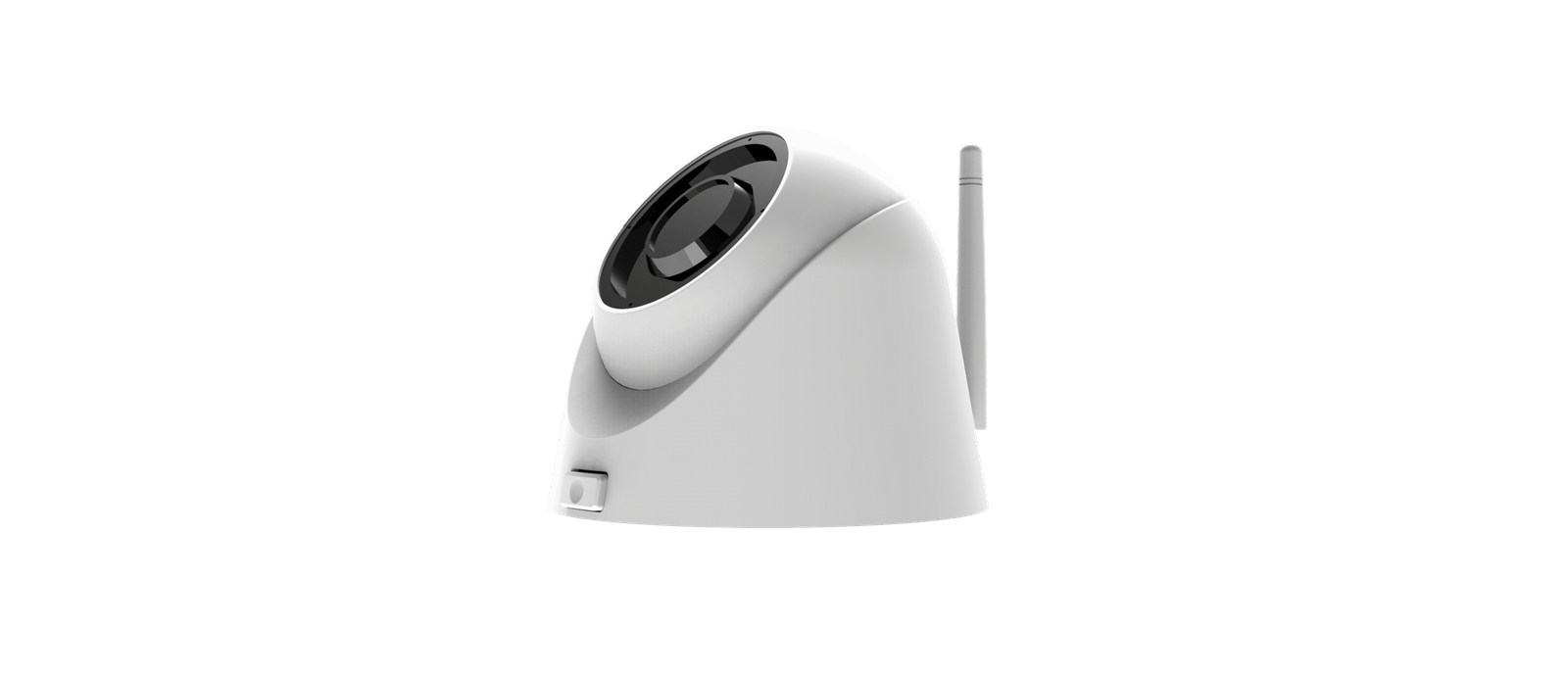

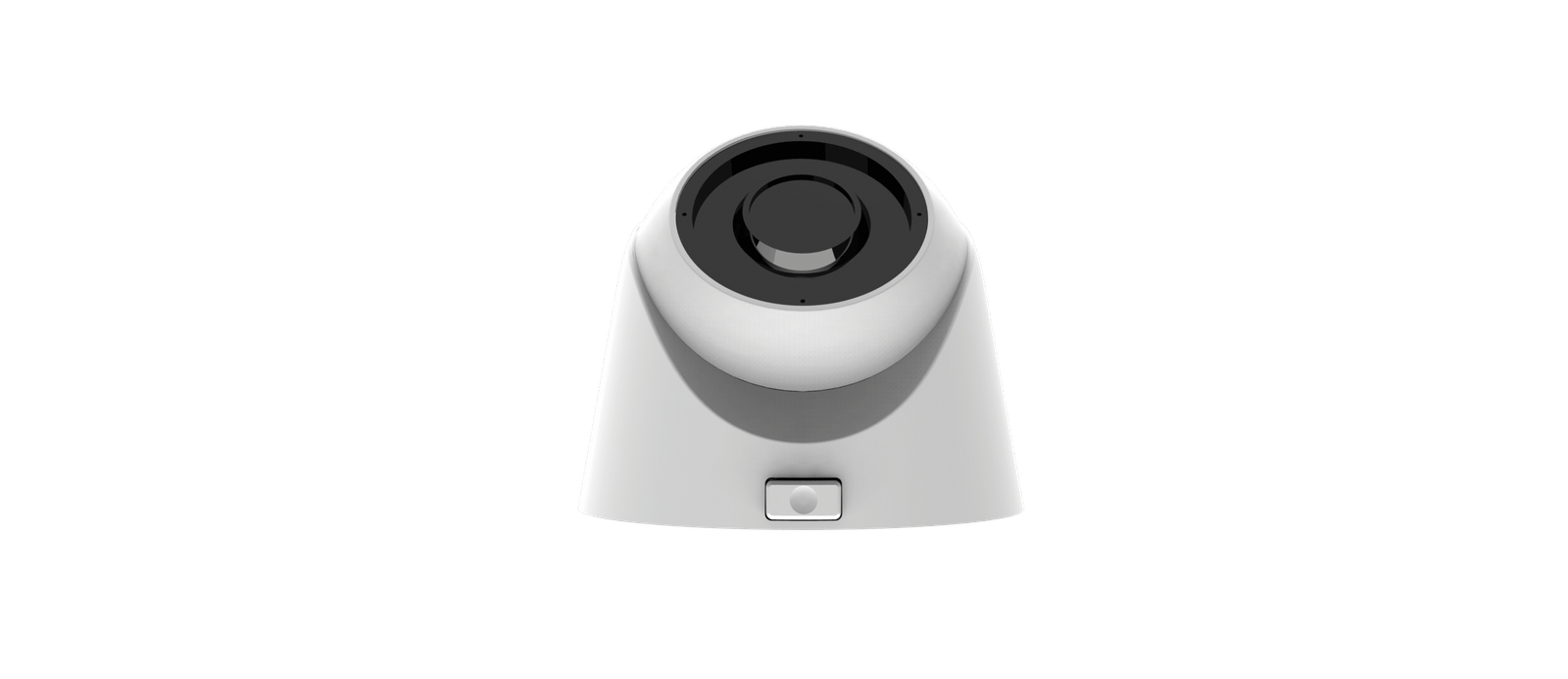

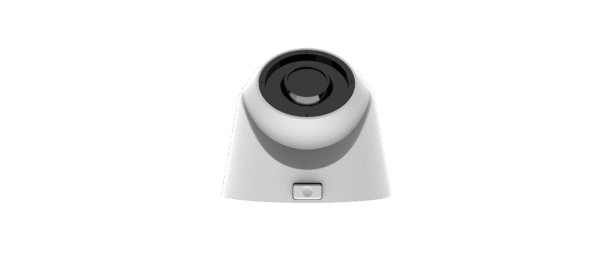

IP Turret Camera 4MP WiFi IR AI Lite Audio I/O HW-D4DQFG36-AS
1/3″ CMOS, Fullhan SOC, DWDR, Internal POE; External Au…
1/3″ CMOS, Fullhan SOC, DWDR, Internal POE; External Audio In/Out Port
Main Stream: 4MP@30fps /1080P@30fps/ 720P@30fps
Smart Analytics: Intrusion Detection (based on human shape detection)
Internal, Support Max 512GB; WIFI Range: No obstacles 300m Max.
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS Sensor |
| Resolution | 4MP |
| Effective Pixels | 2560(H)*1440(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG |
| Audio Compression | G.711A/U, AAC |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.03 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| LENS Type | |
| Focus Length | 3.6mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 4MP |
| Night Vision | |
| Infrared LED | 14µ x 24PCS |
| Infrared Distance | 30M |
| IR Status | Auto Control |
| IR Power On | Smart, Manual & Timed mode |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP,Qos,802.1x |
| ONVIF | Support ONVIF 19.12(Profile S/T/G) |
| P2P | YES, Support QR Code |
| POE | N/A |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2688*1512@25fps |
| Main Stream 2 | 2560*1440@30fps |
| Main Stream 3 | 1920*1080@30fps 1280*720@30fps |
| Sub Stream 1 | 1280*720@30fps |
| Sub Stream 2 | 720*480@30fps |
| Sub Stream 3 | N/A |
| Tri Stream | N/A |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari |
| Smart Phone | iPhone, Android |
| Wireless | |
| Antena | 3dbi |
| Hotspot | N/A |
| Wi-Fi | Wi-Fi(IEEE802.11b/g/n),2.4Ghz |
| WIFI Range | No obstacles 300m Max. |
| AI Function | |
| Intelligent Analysis | Intrusion Detetion,motion detection based on human detection |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC, Distortion |
| Corridor Pattern | Support |
| ROI | Support |
| Defog Mode | Support |
| BLC | Support |
| WDR | DWDR: 50dB |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese |
| Interface | |
| Audio | Audio IN/OUT |
| Alarm | N/A |
| SD Card Slot | Internal, Support Max 512GB |
| RS485 | N/A |
| General | |
| Housing | Metal, IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 500mA |
| Dimension | ￠120 x 104(H) mm |
| Weight | 600g |
