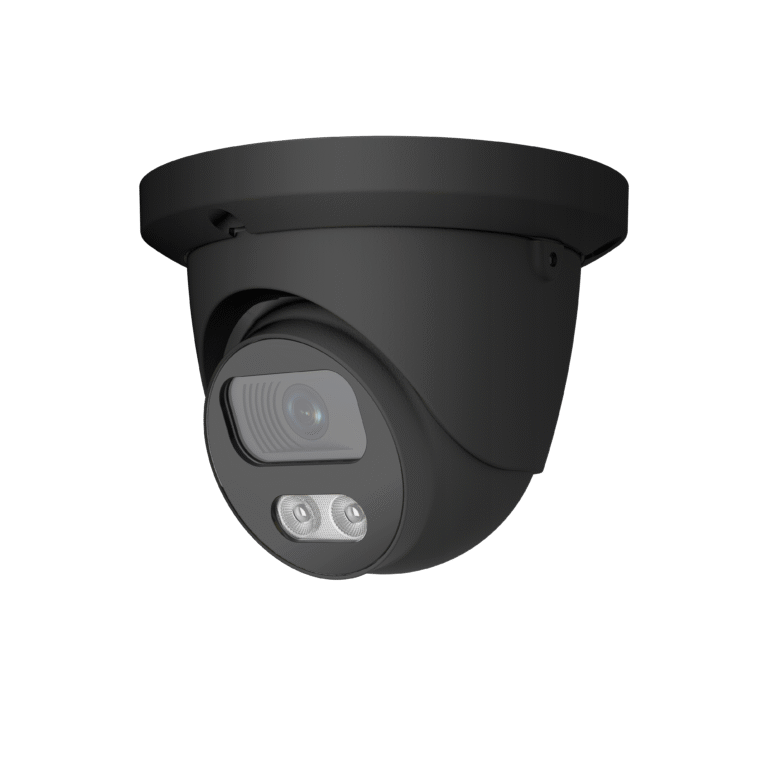

CS Pro Active Deterrence IP Camea ITRL25P-36AD 8MP Turret 3.6mm
1/2.8″ Sony sensor, NOVATEK SOC, WDR, Internal POE Built in Mic
Main Stream: 5MP@30fps/4MP@30fps/ 1080P@30fps/720P@30fps;
Support red & blue strobe light and sound alarm; Support dual supplement light mode; Two way audio; Alarm I/O; External SD Card Slot (Max.1TB)
Smart Analytics: Intrusion/ Line Crossing Detection (based on human shape&vehicle detection); Wandering/People Gathering Detection (based on human shape detection)
1/2.8″ Sony sensor, NOVATEK SOC, WDR, Internal POE Built in Mic
Main Stream: 5MP@30fps/4MP@30fps/ 1080P@30fps/720P@30fps;
Support red & blue strobe light and sound alarm; Support dual supplement light mode; Two way audio; Alarm I/O; External SD Card Slot (Max.1TB)
Smart Analytics: Intrusion/ Line Crossing Detection (based on human shape&vehicle detection); Wandering/People Gathering Detection (based on human shape detection)
| SPECIFICATION | |
| Model NO. | ITRL25P-36AD |
| Camera | |
| Image Sensor | 1/2.8″ SONY Starvis Back-illuminated CMOS sensor |
| Resolution | 5MP |
| Effective Pixels | 2616 (H)*1964 (V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI |
| Audio Compression | G711A/U,AAC |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.006 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Lens | |
| Focus Length | 3.6mm, horizontal FOV 80°, vertical FOV 56°, diagonal FOV 107° |
| Focus Control | Fixed |
| Lens Type | Fixed focal lens |
| Pixels | 5MP |
| Night Vision | |
| Supplement Light | 42µ x 2PCS，Support Warm light LED 4000K, up to 25m ，42µ x 2PCS IR LED |
| Supplement Light Distance | IR 25m, Warm light 20m |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | N/A |
| Protocol | TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x |
| ONVIF | Support ONVIF 19.12(Profile S/T/G) |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2592*1944@30fp |
| Main Stream 2 | 2560*1440@30fp |
| Main Stream 3 | 1920*1080@30fps 1280*720@30fps |
| Sub Stream 1 | 1280*720@30fps |
| Sub Stream 2 | 720*480@30fps |
| Sub Stream 3 | / |
| Tri Stream | / |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari |
| Smart Phone | iPhone, Android |
| AI Function | |
| Intelligent Analysis | Intrusion Detetion(based on human and Vehicle Detection), Line Cross Detetion(based on human and Vehicle Detection), Loiter Detetion, People Gather Detecion(based on human detection),Motion detection based on human detection |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, Anti Flicker, Video Tampering,HLC |
| Full Color | Support |
| Corridor Pattern | Support |
| Defog Mode | N/A |
| ROI | Support |
| BLC | Support |
| WDR | Support |
| Motion Detection | Support(support enable the detection based on human movement only) |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese |
| Interface | |
| Audio | Built in Mic and Speaker |
| Alarm | 1ch Alarm In/1ch Alarm Out |
| SD Card | External, Support Max 1TB |
| General | |
| Housing | Metal , IP67 |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +60℃ RH95% Max |
| Storage Temperature | -30℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 700mA |
| Dimension | Ø126.8×107.2mm |
| Weight | 865g |
